MOD-IO 1421

Product Features

  • Industry standard NO/NC type relay with adapter for easy use
  • Internal memory latching facility for relay which save the relay state during power off

Applicable Industry

  • Remote data acquisition
  • Industrial process control
  • Process monitoring
  • Energy management
Inquiry Now
  • Product Description
  • Product Features
  • Product Specifications
  • Applicable Industry
  • Documents

Product Description

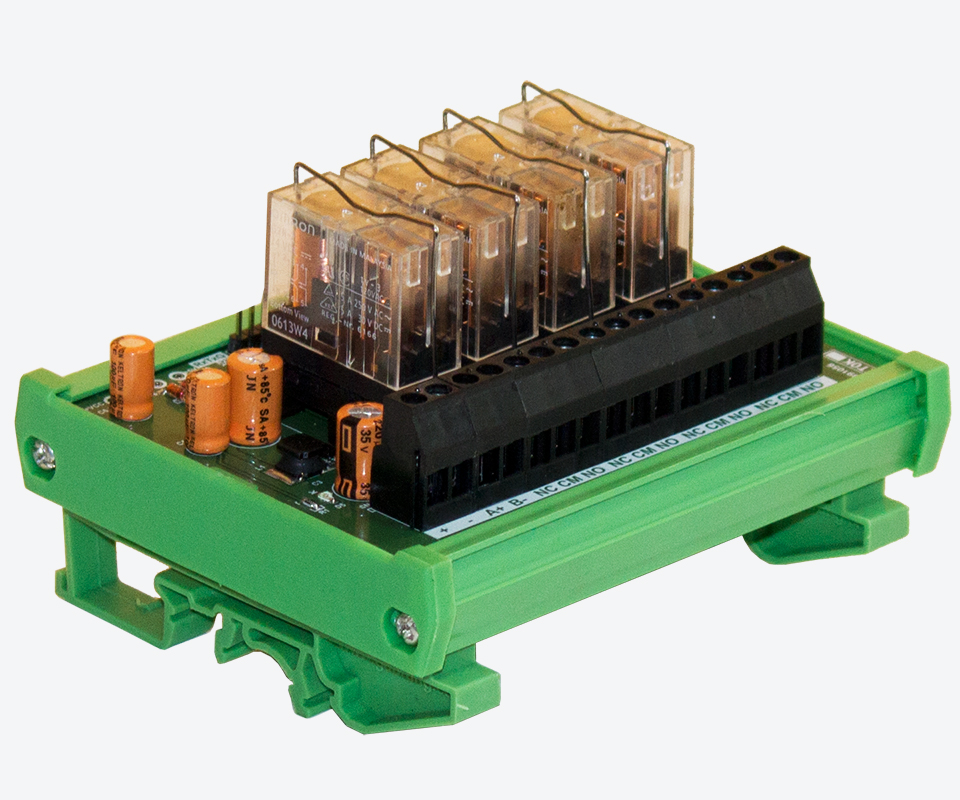

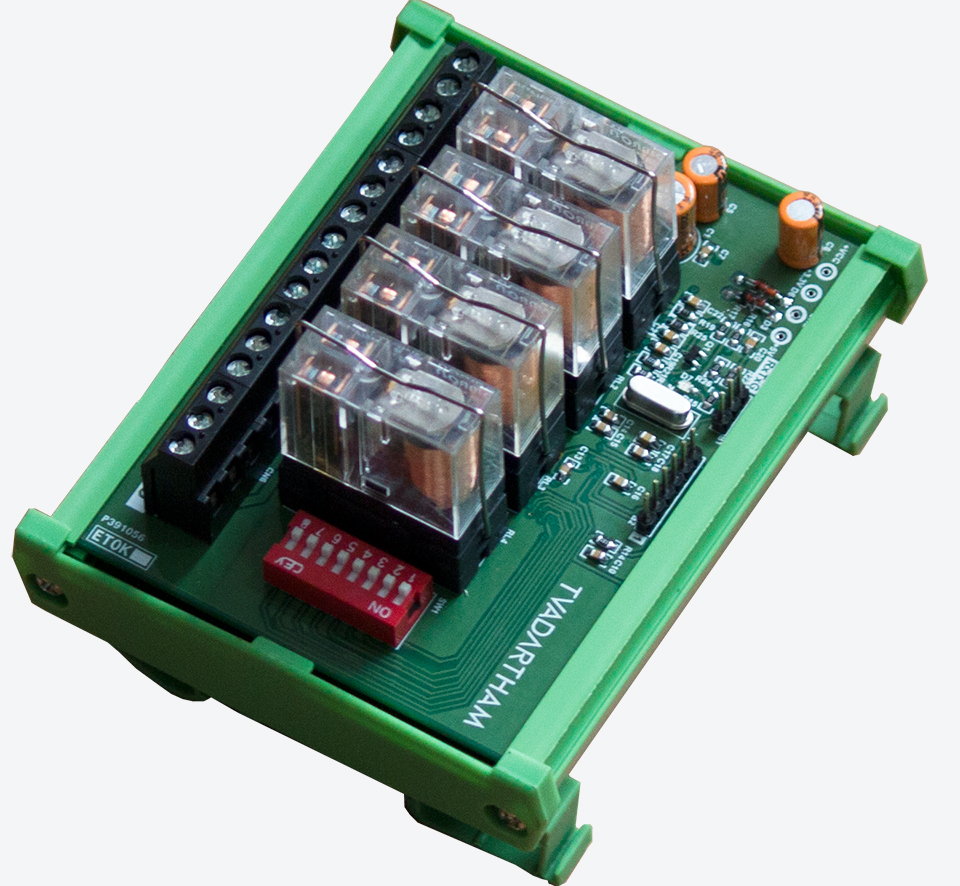

MOD-IO relay output card is a smart device used control external devices, machine and alarm system using RS-485 based Modbus-RTU protocol. It has four NO/NC output relay with internal memory latching facility.

In The Box

  • MOD-IO 1421
  • USB OTG CONNECTOR
  • QUICK INSTALLATION GUIDE

Product Features

Product Features

  • Industry standard NO/NC type relay with adapter for easy use
  • Internal memory latching facility for relay which save the relay state during power off
  • Highly adaptable and ready to connect application for industrial use
  • Easy setup and configurable as per application

Product Specifications

Product Specifications

Supply voltage 24 VDC
Output 4 nos NO/NC type Relay
Relay Contact Rating 250VAC/5A 30VDC/5A
Communication RS-485 Modbus RTU
Indication LED for communication
Operating Temperature 0 to 65 Degree C
Operating Humidity 95% RH
Dimension 108 x 90 x 70 (L x W x H) in mm
Weight 0.48 kg - Approx.
Mounting DIN rail Mount

Applicable Industry

Applicable Industry

  • Remote data acquisition
  • Process monitoring
  • Industrial process control
  • Energy management
  • Supervisory control
  • Security systems
  • Laboratory automation
  • Building automation
  • Direct digital control

Documents

Documents

No Documents Available.
