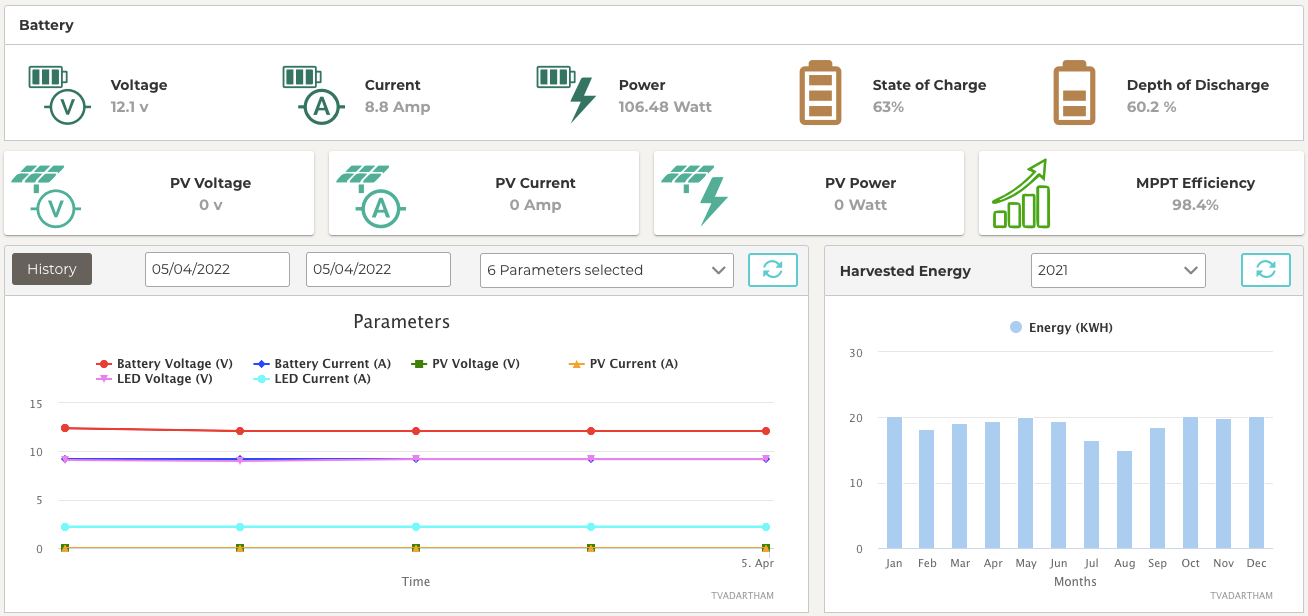

SSL-RMS is a cost effective monitoring solution which allows user to monitor all data regarding Battery Health, PV Power Generation, Luminary Consumption, Luminary Run Time and Fault analysis. This system can enhance your Solar-Light to monitor remotely. Interactive Web-Portal presents historical and aggregated data, comparative analytical diagnosis and a guided root-cause for fault analysis. All data are logged and can be securely reviewed and analyzed at any time from any location.
Input Voltage (PV) | 15V DC - 25V |
Maximum Battery Charging Current | 10Amp |
Battery Low Voltage | 11.4V |
Battery full, load reconnect voltage | 13V |
Battery Over Voltage | 14.6V |
LED(Load) Voltage | 9V |
LED(Load) Current | 2.2Amp |
Dusk to Down Operation | NTTV (Night Time Threshold Voltage) : 4.0 V , DTTV (Day Time Threshold Voltage): 6.0 V |
LED Driver Efficiency | More than 90% |
MPPT Efficiency | More than 95% |
Duty Cycle | First 4 hours 100%, Second 4 hours (50%) and Third 4 hours (100%) |
Charge Controller Methodology | MPPT three stage battery charge monitoring algorithm |
LED Indication | Green LED: ON=> Battery Charging, OFF=> Battery Charged # Red LED: ON=> Load (LED) Cutoff, OFF=> Load(LED) Connected # Blue LED: ON=> RMS Working, OFF=>RMS Not Working |
Protection | Short Circuit, Battery Over Charge and Deep discharge, PV Reverse Voltage and Battery Reverse Voltage, Surge Protection |
Ideal Current Consumption (Driver with Charger) | Less than 20mA |
Enclosure | PCB form |
Dimension (LxWxH) in mm | 90x84x25 |
Operating Temperature | 0 to 60 Degree C |
Operating Humidity | 95% RH |
