TG 1511
Product Features
- Support Protocol MQTT, REST and SOCKET
- Secure Data Protection TLS/SSL/X.509 Certificate
View Details
Applicable Industry
- Remote Data acquisition
- Industrial process control
- Process monitoring
- Energy management
View Details
Inquiry Now
- Product Description
- Product Features
- Product Specifications
- Applicable Industry
- Documents
Product Description

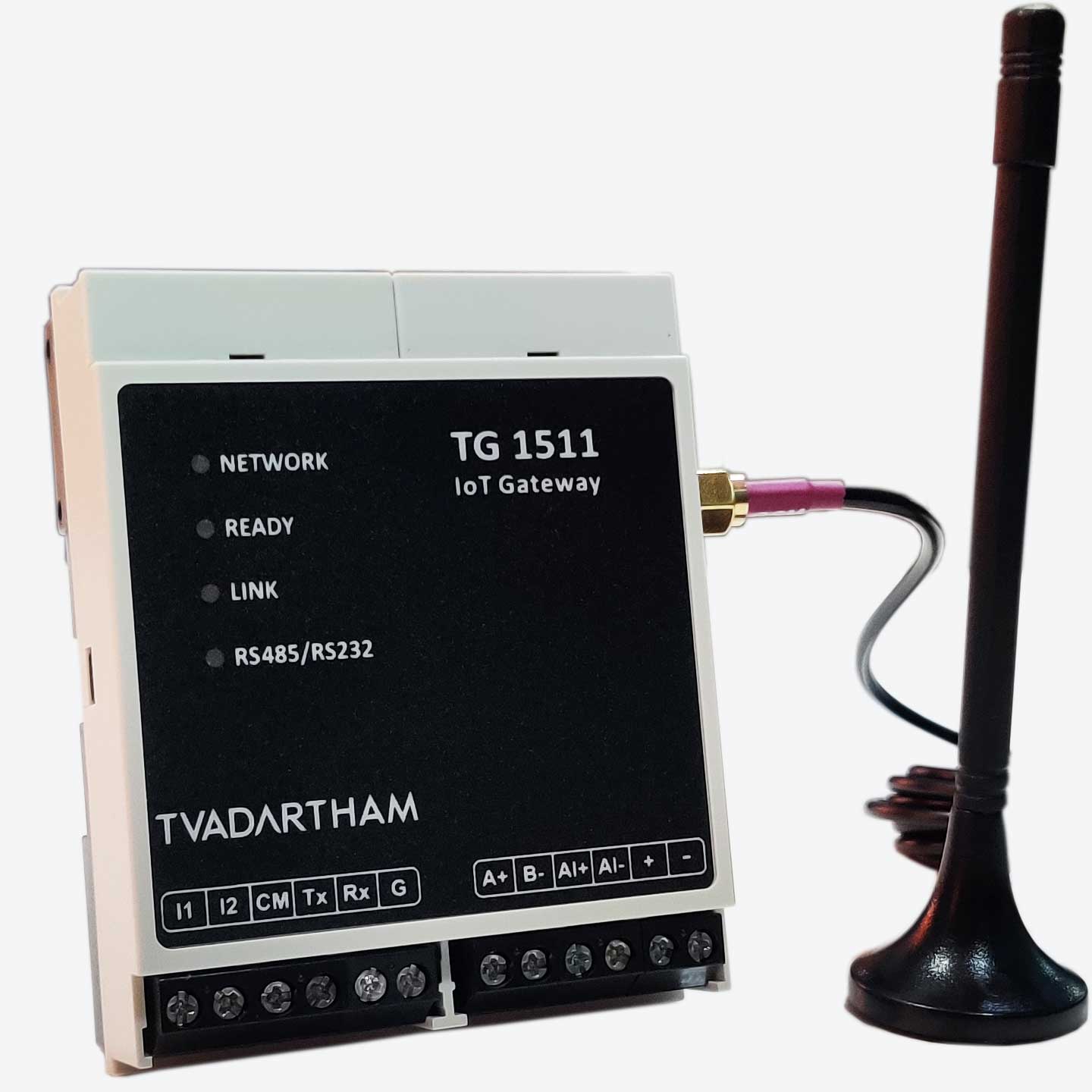

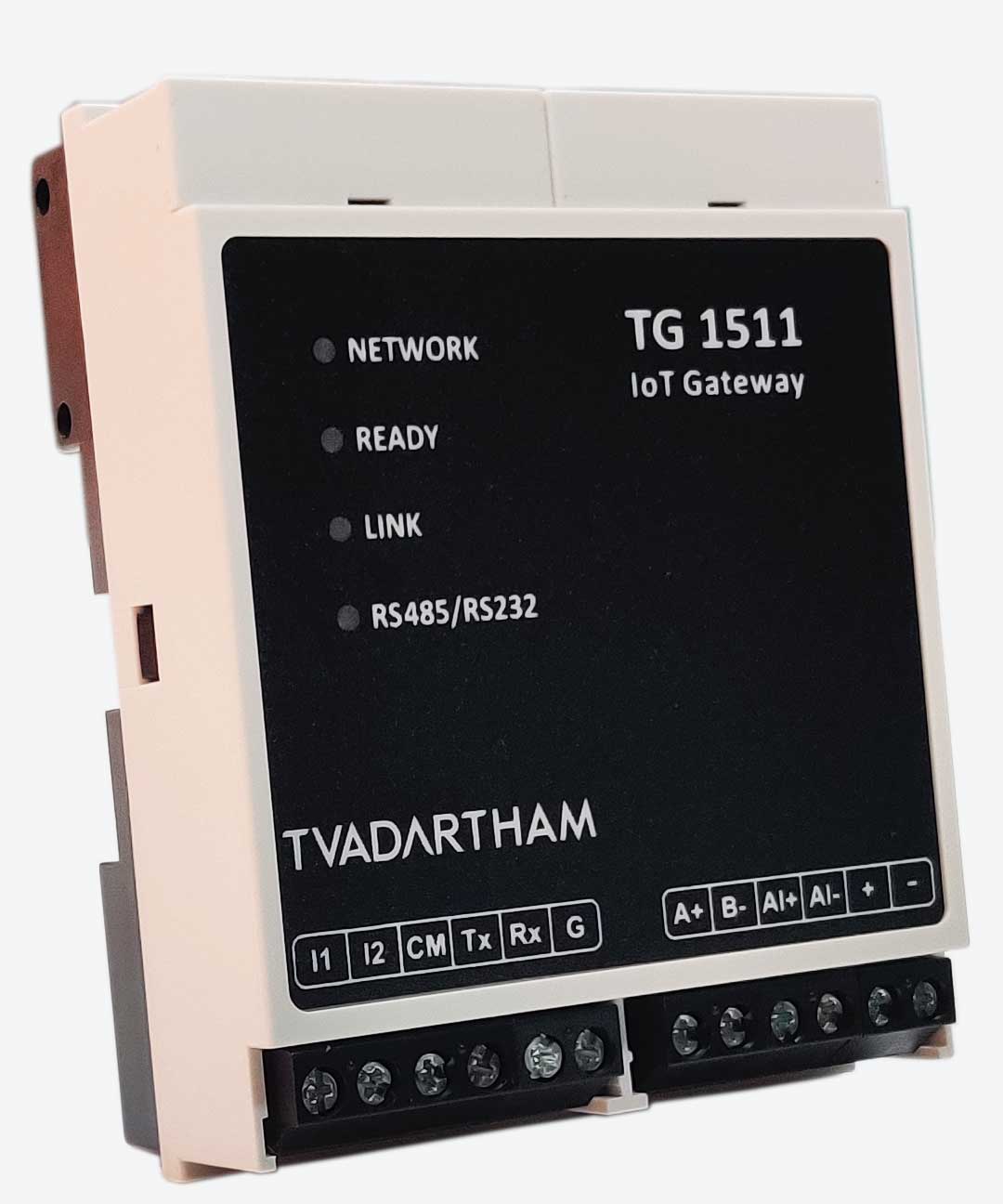

CONNECT. CONFIGURE. CATCH TG 1511 is next Generation IoT Gateway which will connect with any type Machine and enable to monitor your machine, Plant and assets. It will be configured with PLC, HMI and any Device which has modbus connectivity.
In The Box
- TG 1511
- HIGH GAIN EXTERNAL ANTENNA
- USB OTG CONNECTOR
- WALL MOUNTING PLUG WITH SCREW
- QUICK INSTALLATION GUIDE
Product Features
Product Features
- Support Protocol MQTT, REST and SOCKET
- Secure Data Protection TLS/SSL/X.509 Certificate
- MODBUS Support With All Features and RS-485 / RS-232 Support
- 200 Unique Parameter for Log and Alarm
- Configurable Log and Alarm for each Parameter
- Two Digital Inputs and One Analog Input With Configurable String For External Sensor Connection
- Easy To Install and Integrate with PLC,HMI and any type of Machine
- Log and Alarm With Time Stamp
- Easy To Install and Integrate with PLC, HMI and any type of Machine via Modbus
Product Specifications
Product Specifications
| Input Voltage | 10 to 30V DC, 1Amp |
| Cellular Technology | Quad Band (GSM/GPRS) (850/900/1800/1900 MHz) |
| SIM Card Compatibility | 3V and 1.8V - Micro SIM-Card |
| Antenna | 3dbi External Magnetic Antenna |
| Communication Channel 1 | RS-485 with Transient Voltage Protection |
| Communication Channel 2 | RS-232 with Transient Voltage Protection |
| Digital Input Channel | 2nos Potential Free Inputs (NPN type) |
| Analog Input channel | 1no Current Input i.e. 4-20mA |
| Modbus | Serial - Master - RTU/ASCII |
| No of Parameters | 200 nos Unique Parameters for Log/Alarm |
| No of Slave Devices | 16 nos |
| USB | USB2.0 with USB-B Type connector |
| Indication | 4-LED for Network, GSM, Server and Communication |
| Configuration | Via USB with Android Mobile Application and SMS |
| Enclosure | ABS with IP31 Protection |
| Mounting | DIN Rail or Wall Mounting |
| Dimension (L x W x H) | 90 x 70 x 31 (in mm) |
| Weight (with Antenna) | 0.28 kg - Approx. |
| Operating Temperature | 0 to 70 Degree C |
| Operating Humidity | 95% RH |
Applicable Industry
Applicable Industry
- Remote Data acquisition
- Process monitoring
- Industrial process control
- Energy management
- Supervisory control
- Security systems
- Laboratory automation
- Building automation
- Product Testing
- Direct Digital control
- Smart Agriculture
