BACK TO Solar Pump Monitoring System
SSP-RMS 1181
Product Features
- Firmware Over The Air Supported (FOTA)
- Unique user ID and password for every user
View Details
Applicable Industry
- Agriculture
- Goverment Project
- Solar Pump
- Irrigation
View Details
Inquiry Now
- Product Description
- Product Features
- Product Specifications
- Applicable Industry
- Documents
Product Description

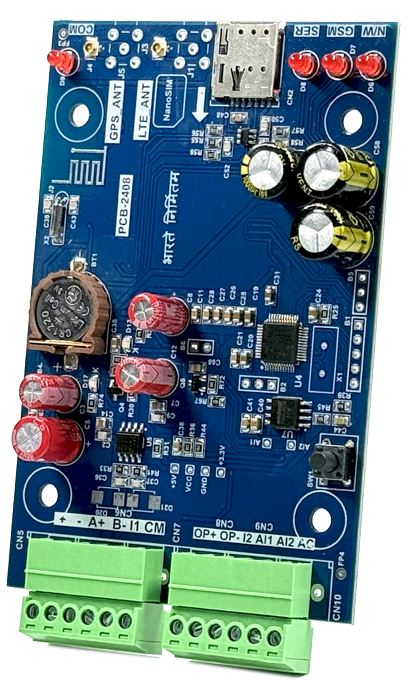

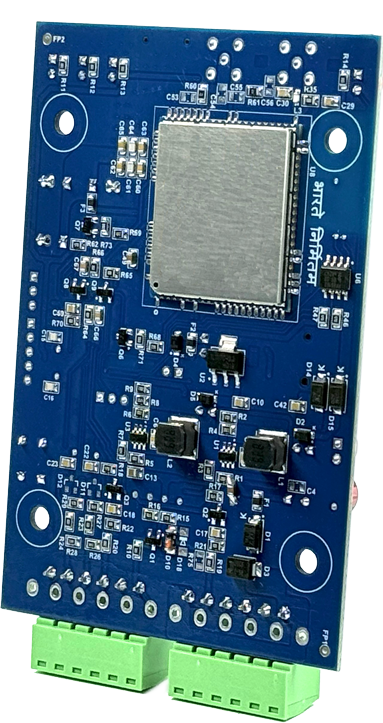

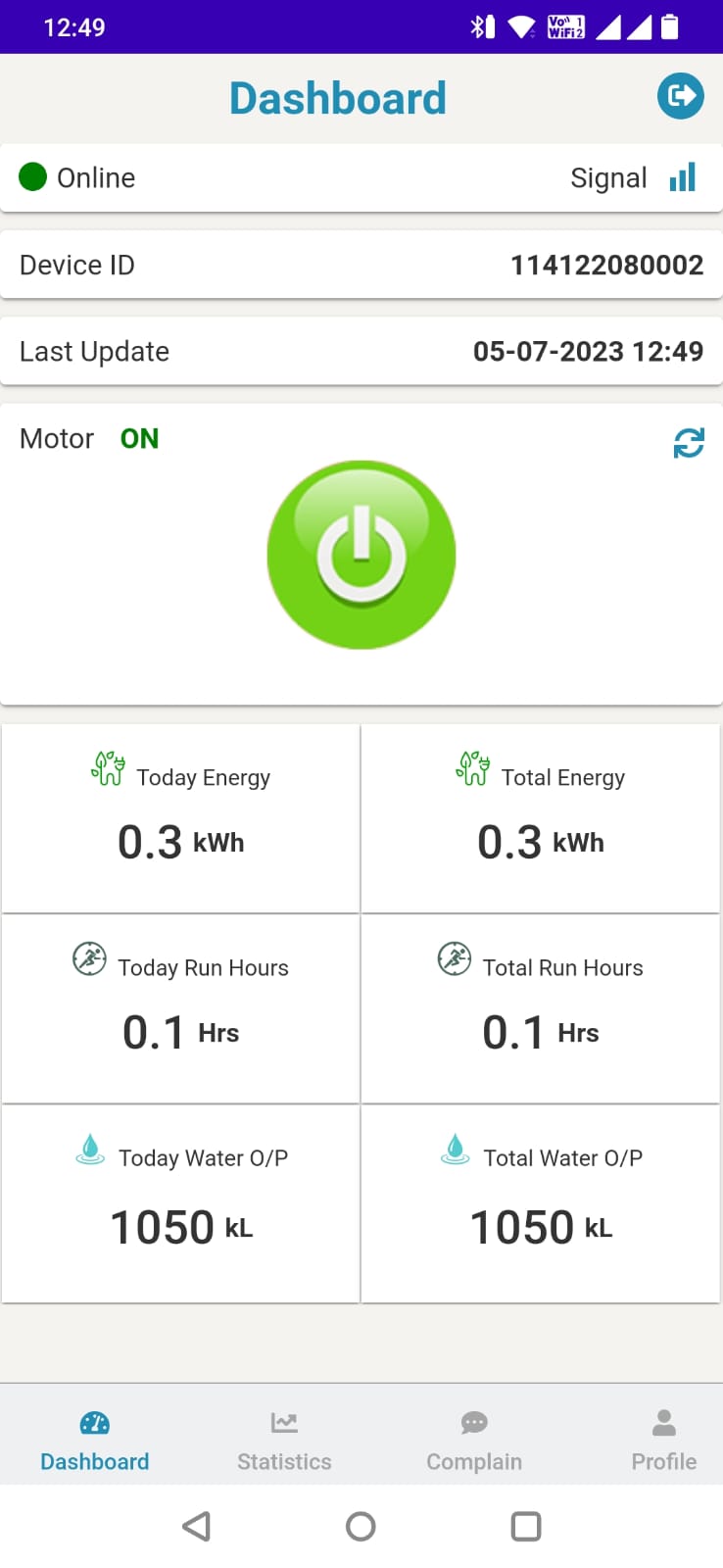

SSP-RMS 1181 is 4G/2G based a cost effective monitoring solution which allows user to monitor all data regarding Solar power generation, consumption, pump run time and fault analysis. This gateway can enhance your pump-drive to monitor remotely via Mobile App. Interactive Web-Portal represents historical and aggregated data, comparative analytical diagnosis and a guided root-cause for fault analysis. All data are logged and can be securely reviewed and analyzed at any time from any location.

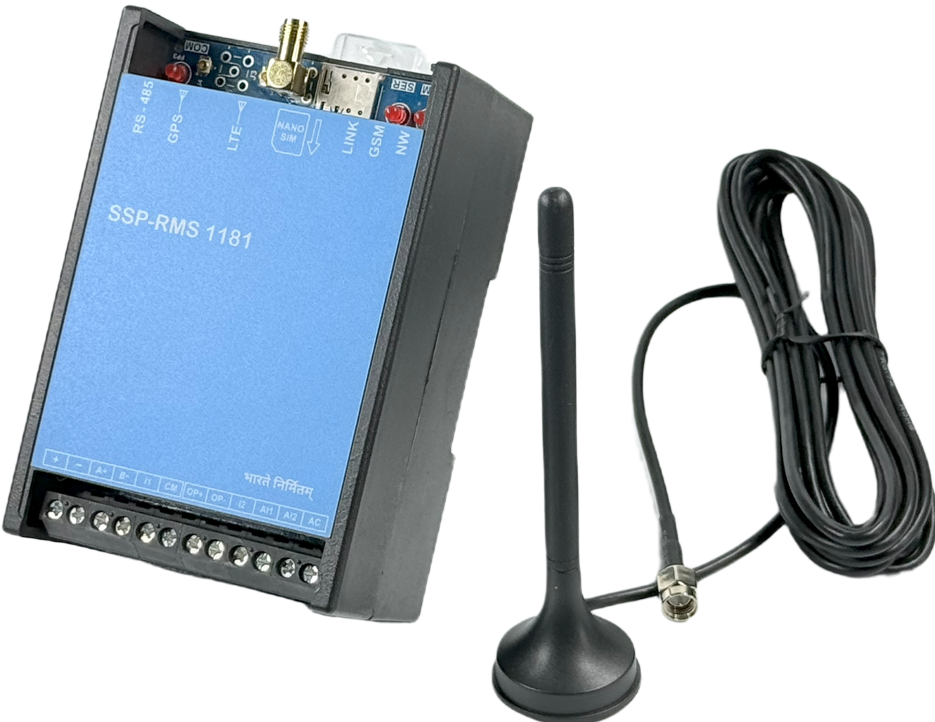

In The Box
- SSP-RMS 1181
- HIGH GAIN EXTERNAL GSM ANTENNA
- HIGH GAIN EXTERNAL GPS ANTENNA
Product Features
Product Features
- Firmware Over The Air Supported (FOTA)
- Unique user ID and password for every user
- Include server maintenance for 5 Years
- Enables generation of comprehensive reports on site's energy production, revenues and technical status
- High resolution data and visualization of past 60 months with 10 minute resolution
- You can promote your logo with contact details in channel
- Now your Pump Drive is in your control. You can read/write data remotely anytime, anyplace and you can change any parameter without any hassles from web.
- Configure with any brand of Drive like Fuji, CG, INVT, Viechi and more than 24 VFD.
- Also you can start/stop your pump remotely by just one click on web as well as Mobile App
- Internal data backup for one month due to lack of server connection. The data will be uploaded to the server as soon as connection resumes. Zero failure of data.
Product Specifications
Product Specifications
| Input Voltage | 10 to 30 VDC, 1 Amp |
| Cellular Technology | 4G (LTE-FDD B1/B3/B5/B8) (LTE-TD B43/B38/B39/B40/B41) , 2G (900/1800MHz) |
| SIM Card Compatibility | 3V and 1.8V - Nano SIM-Card |
| GNSS | GSP Supported |
| Antenna | High DBi External Antenna LTE + GPS |
| Bluetooth | BLE 5.0 Supported |
| Digital Input | 2 Channel Potentil free Inputs |
| Analog Input | 2 Channel - Current: 4 to 20mA |
| Digital Output | 1 Channel NPN Type |
| Communication Channel | RS-485 Non-Isolated |
| Communication Type | Modbus ? Master ? RTU |
| Indication | 4 LED - Network, GSM, Link, RS-485 |
| Communication Protocol with Server | MQTT with Security of TLS/SSL/X.509 certificate |
| Operating Temperature | 0 to 65 Degree C |
| Operating Humidity | 95% RH |
| Dimension (LxWxH) | 108 x 73 x 53 in mm |
| Mounting | DIN Rail / Panel Mounted |
Applicable Industry
Applicable Industry
- Agriculture
- Solar Pump
- Goverment Project
- Irrigation
- PM-KUSUM Project
Documents
Documents
No Documents Available.
