MOD-IO 1401
Product Features
- Universal Analog Inputs i.e. Current and Voltage
- 6-Channel Selectable Analog Inputs
View Details
Applicable Industry
- Remote Data acquisition
- Industrial process control
- Process monitoring
- Energy management
View Details
Inquiry Now
- Product Description
- Product Features
- Product Specifications
- Applicable Industry
- Documents
Product Description

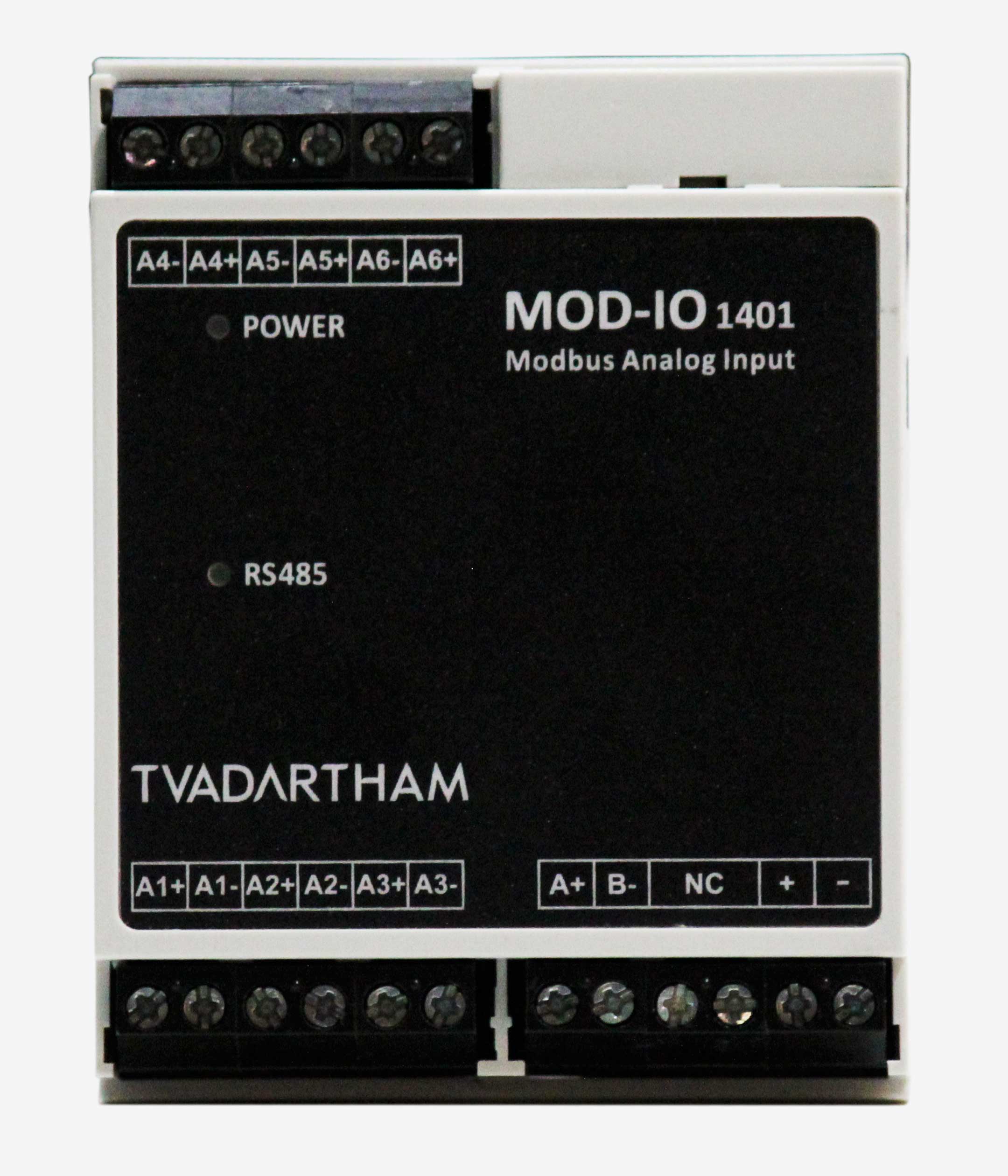

The MOD-IO 1401 is a 12-bit, 6-channel analog input module that provides programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. MOD-IO 1401 offers signal conditioning, A/D conversion, ranging and RS-485 digital communication functions. The MOD-IO 1401 uses a 12-bit microprocessor-controlled sigma-delta A/D converter to convert sensor voltage or current into digital data. The digital data is then translated into engineering units. When prompted by the host computer, the module sends the data to the host through a standard RS-485 interface.
In The Box
- MOD-IO 1401
- USB OTG CONNECTOR
- WALL MOUNTING PLUG WITH SCREW
- QUICK INSTALLATION GUIDE
Product Features
Product Features
- Universal Analog Inputs i.e. Current and Voltage
- 6-Channel Selectable Analog Inputs
- MODBUS with RS-485
- Configurable Communication Parameters
- Watchdog Timer Enable
- All Configuration With Easy Mobile Application
- Easy To Install And Integrate
- Robust Industrial Design
Product Specifications
Product Specifications
| Input Voltage | 10 to 30V DC, 0.5Amp |
| Inputs | 6 Channel Analog Inputs |
| Current Sensing | 4-20mA |
| Voltage Sensing | 0-10V |
| Resolution | 12-bit |
| Communication Channel | RS-485 with Transient Voltage Protection |
| Communication Type | Serial RTU-SLAVE |
| Communication Distance | Serial 1.2 km |
| Indication | 2nos LED - Power and Communication |
| Configuration | Via USB with Android Mobile Application |
| Enclosure | ABS with IP31 Protection |
| Mounting | DIN rail and Wall Mount |
| Dimension (L x W x H) | 90 x 70 x 31 in mm |
| Weight | 0.28 kg - Approx. |
| Operating Temperature | 0 to 70 Degree C |
| Operating Humidity | 95% RH |
Applicable Industry
Applicable Industry
- Remote Data acquisition
- Process monitoring
- Industrial process control
- Energy management
- Supervisory control
- Security systems
- Laboratory automation
- Building automation
- Product Testing
- Direct Digital control
Documents
Similar Products
-
![]()

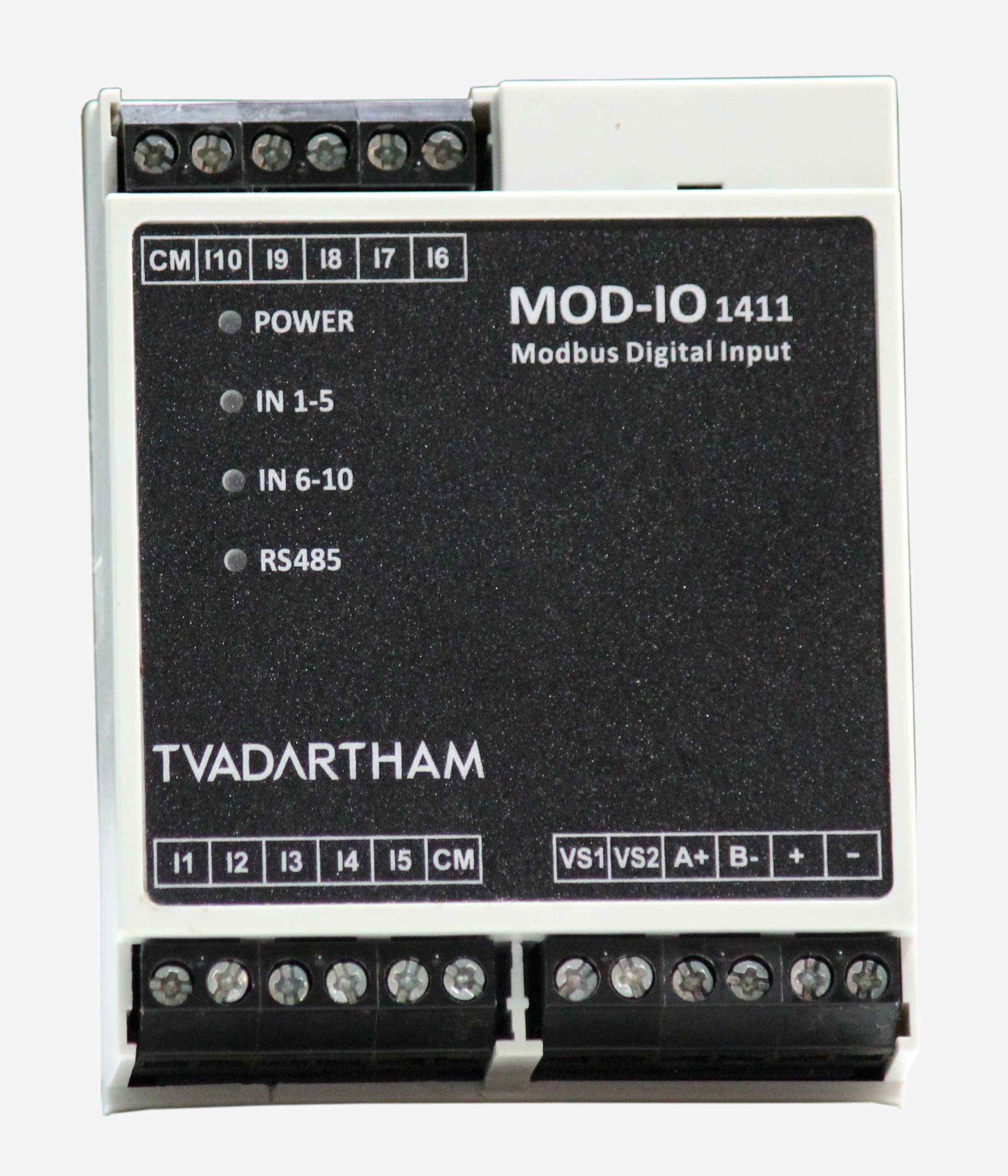

Modbus Digital Input
MOD-IO 1411 -
![]()

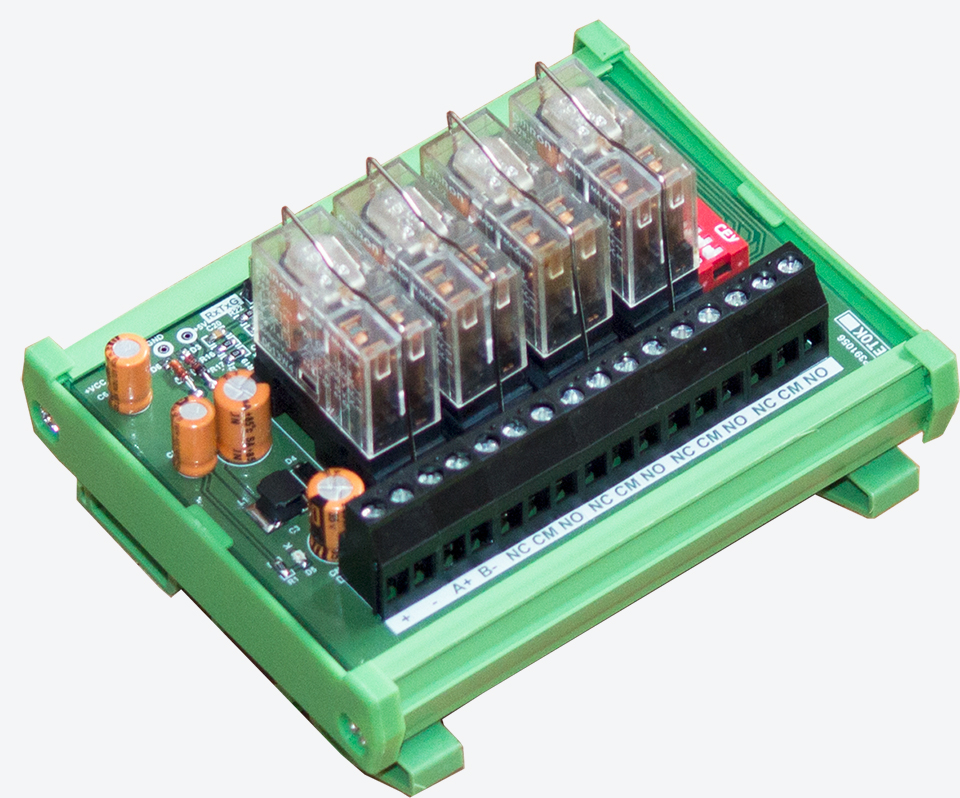

Modbus Relay Output
