SOLAR-PUMP-RMS-LCD

Product Features

  • Unique user ID and password for every user
  • Include server maintenance for 5 Years

Applicable Industry

  • Agriculture
  • Goverment Project
  • Solar Pump
  • Irrigation
Inquiry Now
  • Product Description
  • Product Features
  • Product Specifications
  • Applicable Industry
  • Documents

Product Description

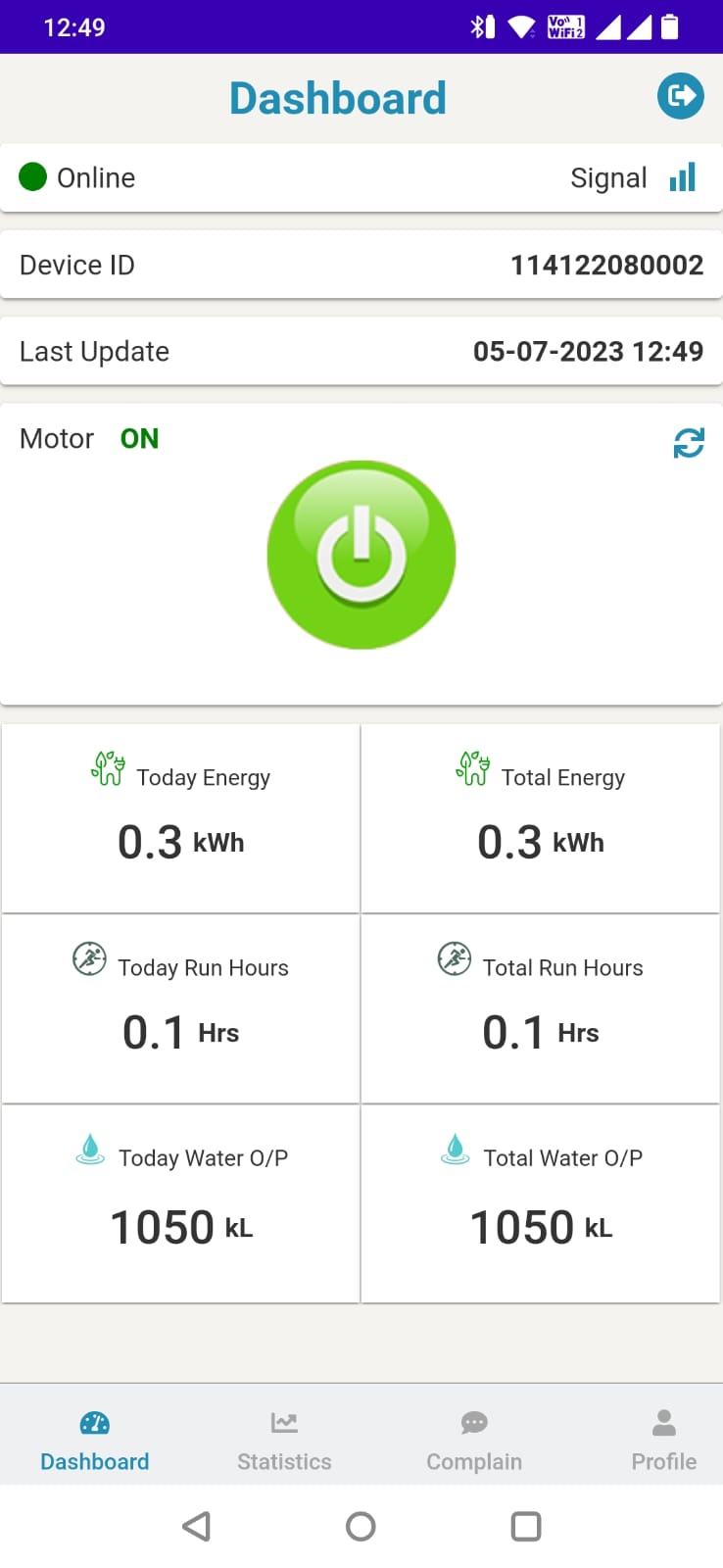

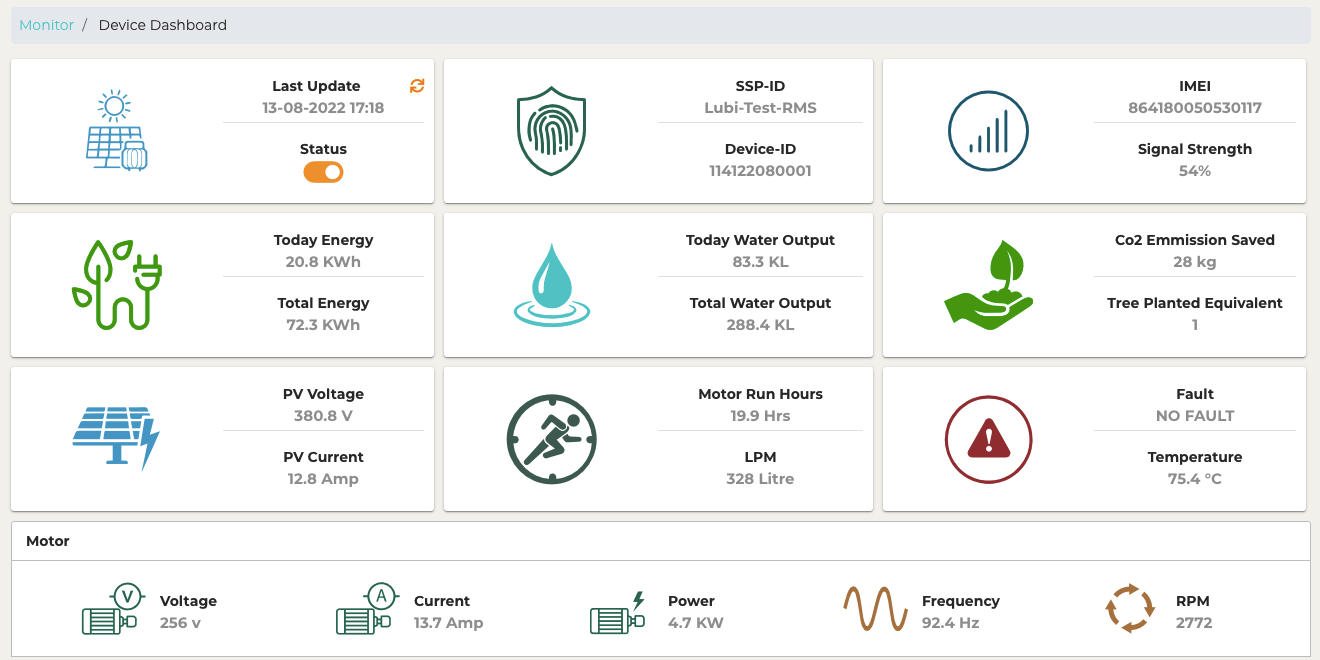

Solar-Pump-RMS is a cost effective monitoring solution, which allows user to monitor all data regarding Solar power generation, consumption, pump run time and fault analysis.This gateway can enhance your pump-drive to monitor remotely. Interactive Web-Portal presents historical and aggregated data, comparative analytical diagnosis and a guided root-cause for fault analysis. All data are logged and can be securely reviewed and analyzed at any time from any location.

In The Box

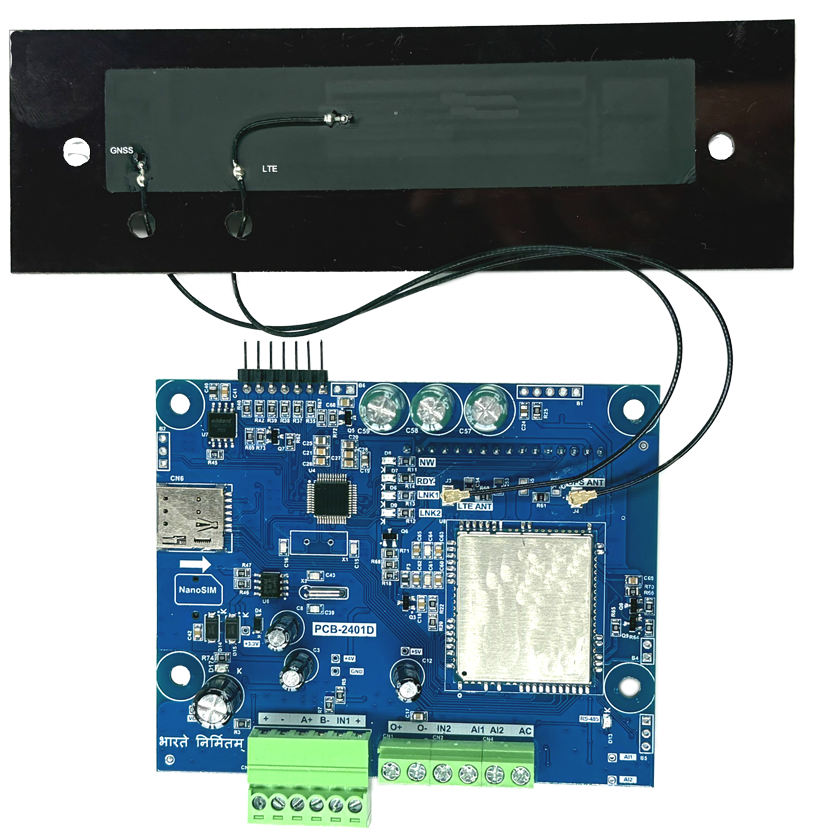

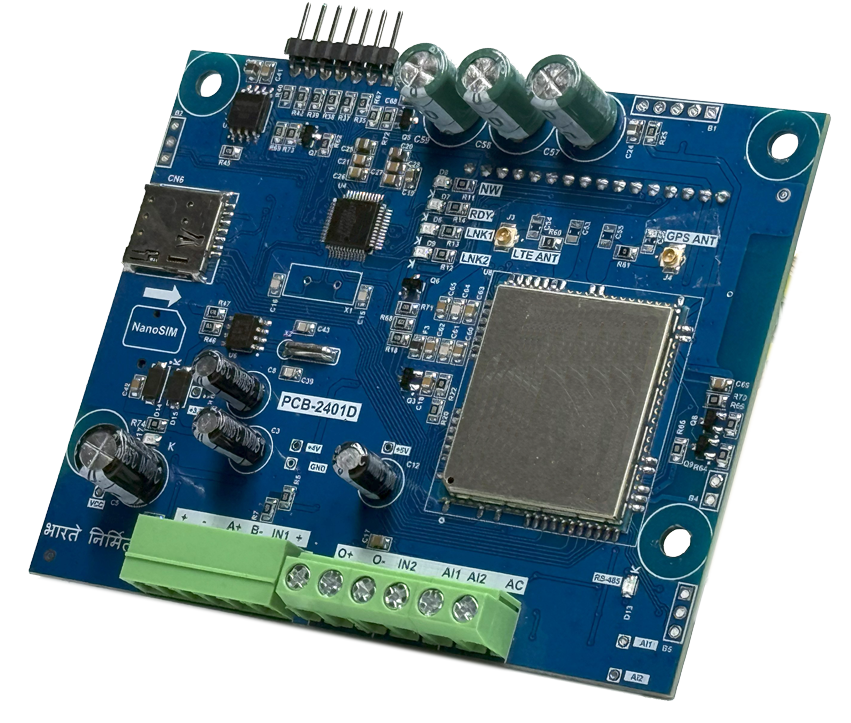

  • SOLAR-PUMP-RMS-LCD
  • HIGH GAIN EXTERNAL ANTENNA

Product Features

Product Features

  • Unique user ID and password for every user
  • Include server maintenance for 5 Years
  • Enables generation of comprehensive reports on site's energy production, revenues and technical status
  • Enables immediate fault detection and troubleshooting, efficient maintenance management, and site profitability analysis

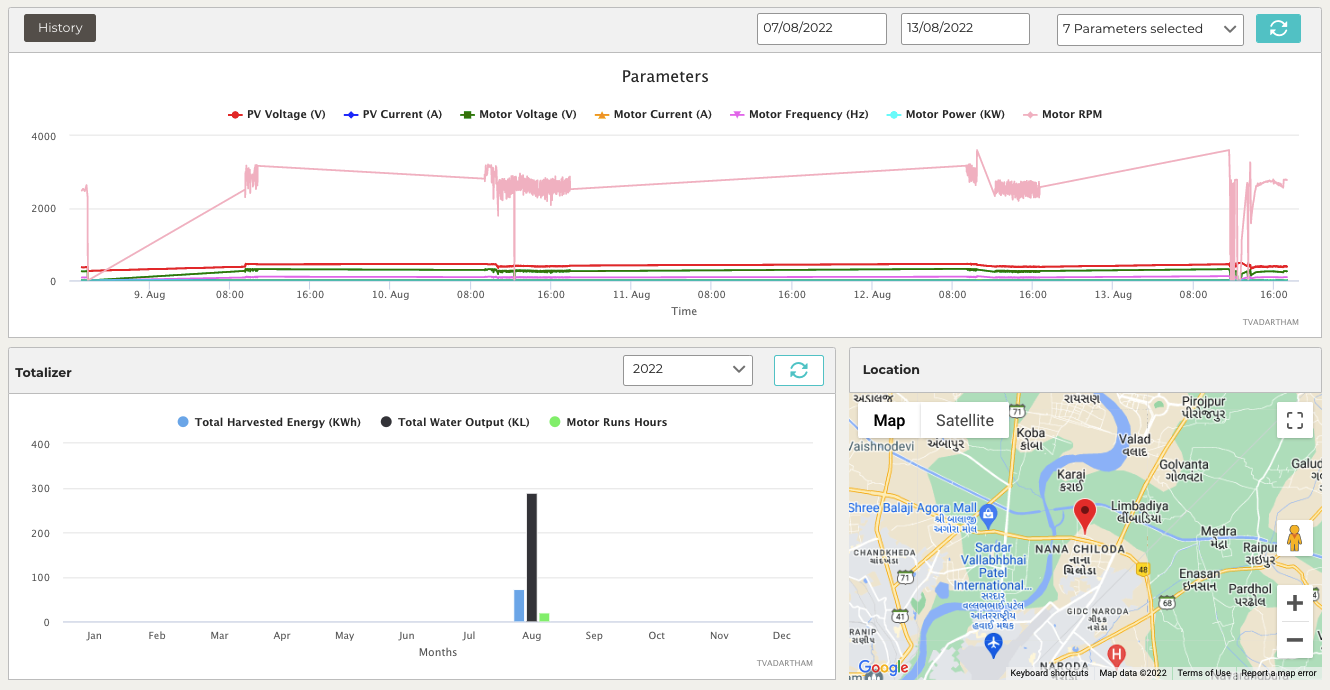

  • High resolution data and visualization of past 12 months with 5 minute resolution
  • You can promote your logo with contact details in channel
  • Now your Pump Drive is in your control. You can read/write data remotely anytime, anyplace and you can change any parameter without any hassles from web.
  • Configure with any brand of Drive like Fuji, CG, INVT, Yasakawa etc.
  • Also you can start/stop your pump remotely by just one click on web
  • Internal data backup for one month due to lack of server connection. Data will be uploaded to the server as soon as connection resumes. Zero failure of data.

Product Specifications

Product Specifications

Input Voltage 10 to 24 VDC, 1 Amp
Cellular Technology Quad Band GSM-GPRS, 850 - 900 - 1800 - 1900 MHz
SIM Card Compatibility 3V and 1.8V - Micro SIM-Card
Antenna 3dbi External Magnetic Antenna
Communication protocol RS-485 Modbus RTU
Configuration Desktop software and SMS
Digital Input 2nos Potential Free contacts
Relay Output 1nos 250VAC/30VDC, 5Amp - Only NO contact
Indication 4nos LED - Network, GSM ready, server and communication
Display 16x2 LCD
Storage SD Card
USB USB 2.0
Operating Temperature 0 to 65 Degree C
Operating Humidity 95% RH
Dimension 92x103x28 (L x W x H ) in mm
Weight with Antenna 0.3 kg - Approx

Applicable Industry

Applicable Industry

  • Agriculture
  • Solar Pump
  • Goverment Project
  • Irrigation

Documents

Documents

No Documents Available.
