KUSUM-C 2201
Product Features
- Connect with Any Brand of VFD and Inverter via RS-485 Modbus
- Connect with Any Brand of Net-meter via RS232-DLMS
View Details
Applicable Industry
- PM-KUSUM Project
- -
- Solar Pump
- -
View Details
Inquiry Now
- Product Description
- Product Features
- Product Specifications
- Applicable Industry
- Documents
Product Description
SSP-RMS 1171 is 4G/2G a monitoring solution, which allows user to monitor all data regarding Solar power generation, consumption, pump run time and fault analysis. Also It will connect with Inverter and Net-meter and enable to monitor data. This gateway can enhance your pump-drive to monitor remotely. Interactive Web-Portal presents historical and aggregated data, comparative analytical diagnosis and a guided root-cause for fault analysis. All data are logged and can be securely reviewed and analyzed at any time from any location.
In The Box

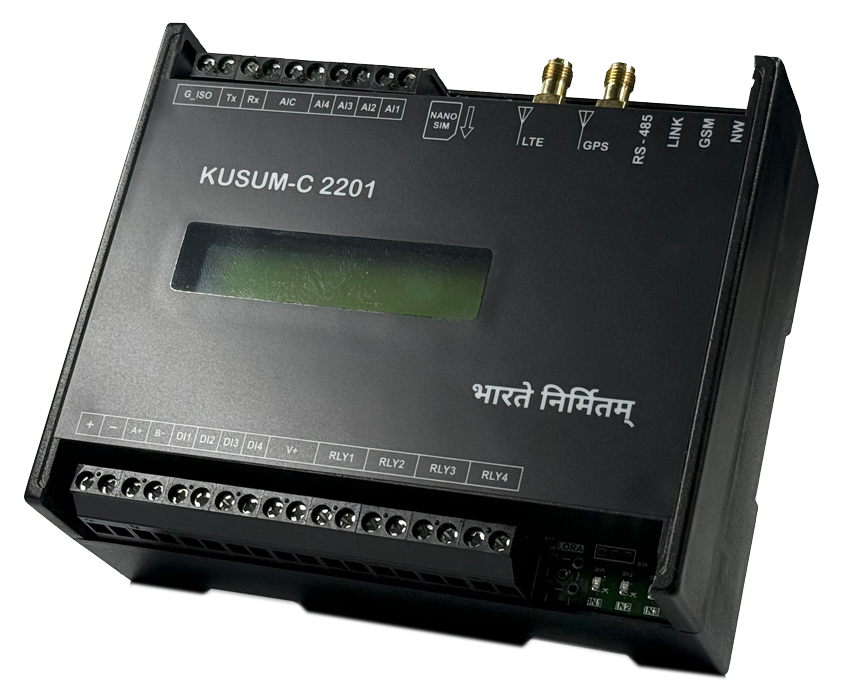

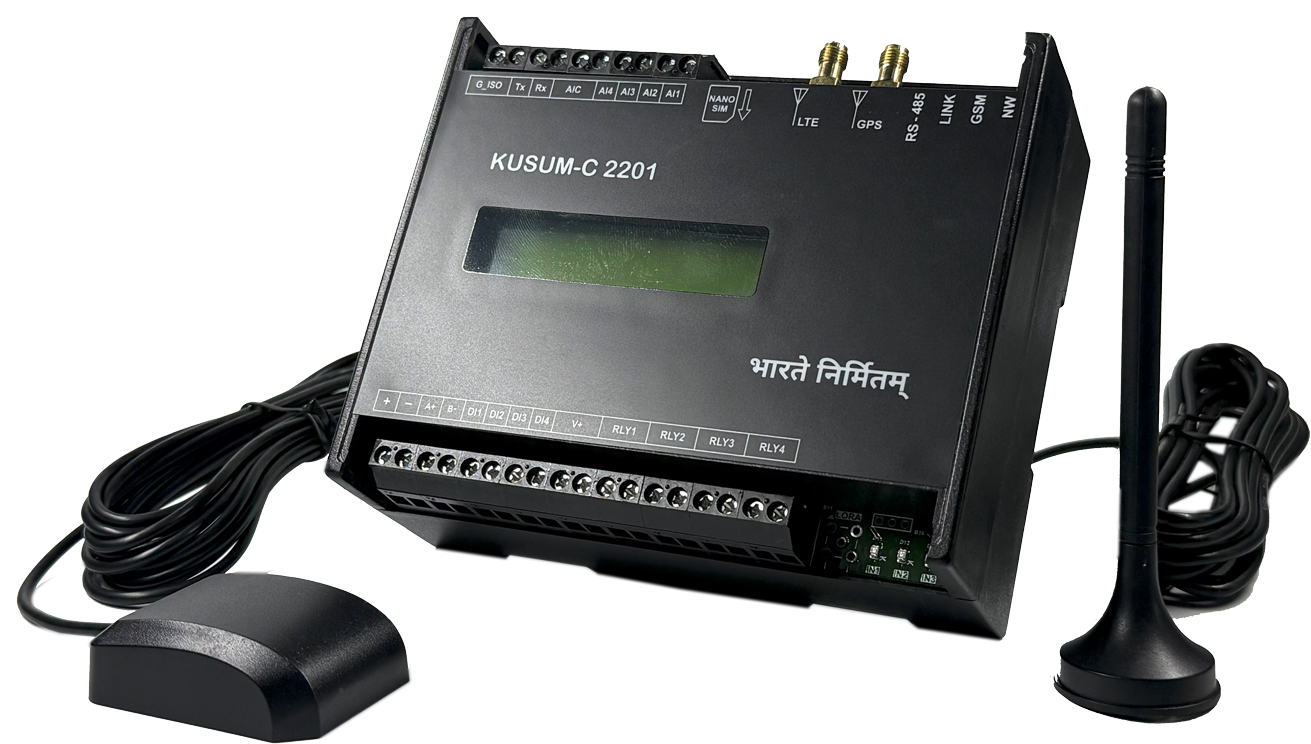

- KUSUM-C 2201
- HIGH GAIN EXTERNAL GSM ANTENNA
- HIGH GAIN EXTERNAL GPS ANTENNA
Product Features
Product Features
- Connect with Any Brand of VFD and Inverter via RS-485 Modbus
- Connect with Any Brand of Net-meter via RS232-DLMS
- Firmware Over The Air Supported (FOTA)
- Unique user ID and password for every user
- Include server maintenance for 5 Years
- Enables generation of comprehensive reports on site's energy production and technical status
- High resolution data and visualization of past 60 months with 10 minute resolution
- Now your Pump Drive is in your control. You can read/write data remotely anytime, anyplace and you can change any parameter without any hassles from web.

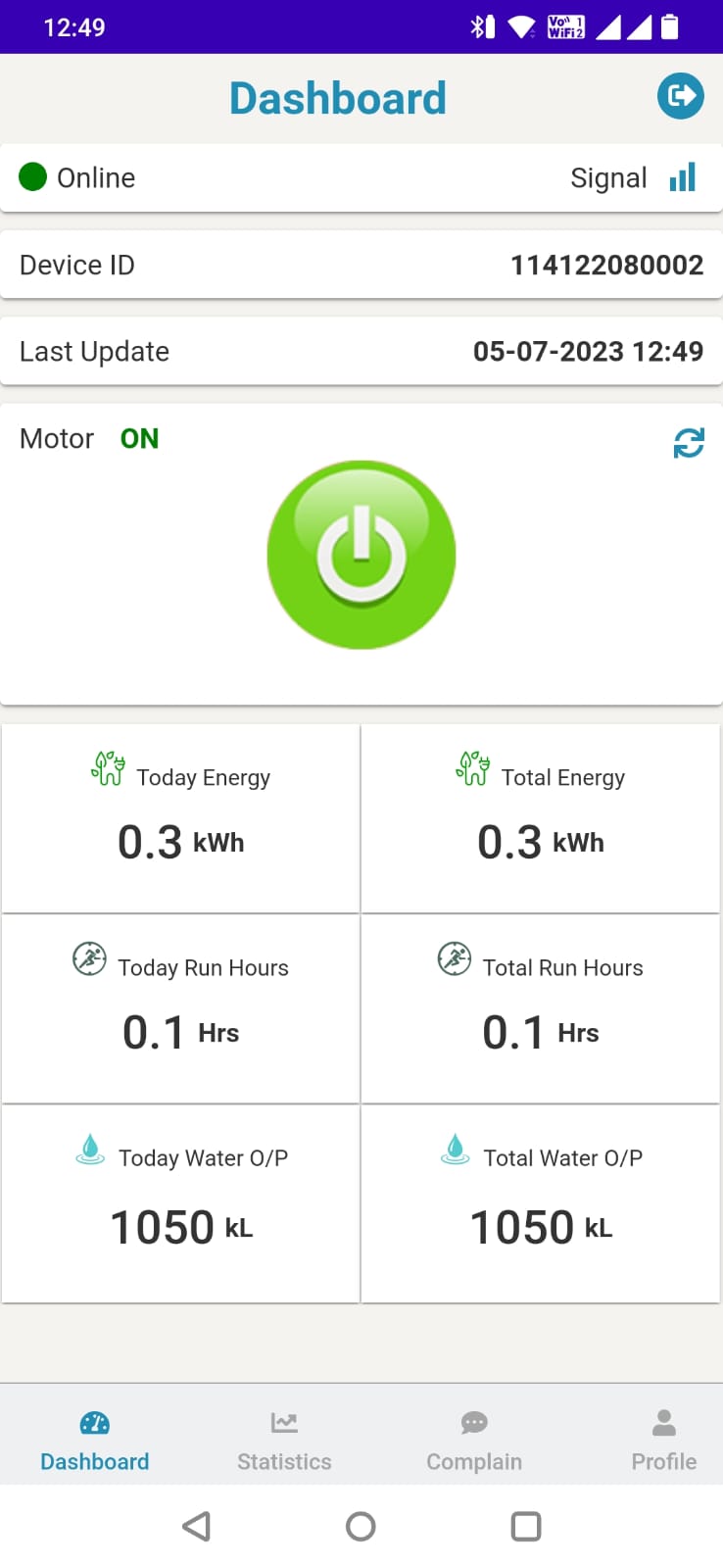

- Also you can start/stop your pump remotely by just one click on web as well as Mobile App
- Internal data backup for one month due to lack of server connection. The data will be uploaded to the server as soon as connection resumes. Zero failure of data.
Product Specifications
Product Specifications
| Input Voltage | 10 to 30 VDC, 1 Amp |
| Cellular Technology | 4G (LTE-FDD B1/B3/B5/B8) (LTE-TD B43/B38/B39/B40/B41) , 2G (900/1800MHz) |
| SIM Card Compatibility | 3V and 1.8V - Nano SIM-Card |
| GNSS | GSP Supported |
| Antenna | High DBi External Antenna LTE + GPS |
| Bluetooth | BLE 5.0 Supported |
| Communication Channel 1 | Isolated RS-485 |
| Communication Channel 2 | Isolated RS-232 |
| Communication Type-1 | Modbus ? Master ? RTU for Inverter and VFD |
| Communication Type-2 | DLMS for Energy-Meter |
| Communication Protocol with Server | MQTT with Security of TLS/SSL/X.509 certificate |
| Digital Input | 4nos Opto-isolated |
| Analog Input | 4nos (4-20mA) |
| Relay Output | 4nos with NO Contact |
| Display | 16*2 Alpha Numeric |
| Enclosure | IP 20 ABS |
| Mounting | DIN Rail |
| Dimension (LxWxH) | 130 x 105 x 54 in mm |
| Operating Temperature | 0 to 70 Degree C |
| Operating Humidity | 95% RH |
Applicable Industry
Applicable Industry
- PM-KUSUM Project
- Solar Pump
Documents
Documents
No Documents Available.
